High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690

High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690
High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690 High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690 High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690 High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690

Large Image :  High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690

Product Details:
Place of Origin: China
Brand Name: BAO STEEL
Certification: ISO,SGS,MTC
Model Number: Q390,Q420,Q460,Q500,Q550,Q620,Q690
Payment & Shipping Terms:
Minimum Order Quantity: 2 ton
Price: 850 usd/ton
Packaging Details: export packing
Delivery Time: 7 days
Supply Ability: 500 tons

High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690

Description
Standard: AISI, ASTM, BS, DIN, GB, JIS Type: Steel Plate
Technique: Hot Rolled Special Use: High-strength Steel Plate
High Light:

carbon steel sheet

,

high carbon steel plate



High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690

1.short delivery time
2.flexible payment term
3.prime quality
4.competitive price

1.Information Descriptions

Item

Steel Sheet,Sheet Steel,

Q690 Steel Sheet,Steel Sheet Q690,

Steel Plate Q690,Q690 Steel Plate

Standard ASTM,AISI,EN,DIN,BS,JIS,SUS,etc
Material Q390B,Q420C,Q460C,Q550D,Q620D,Q690D,etc
Thickness 0.20mm-200mm
Width 2m,2.2m,2.5m,or as customer required
Length 8m,10m,12m,or as customer required
Packing

Standard Export Seaworthy Package.

Suit for all kinds of transport,or as required

Price Term EXW,FOB,CIF,CFR,etc
Payment Term L/C,T/T,D/P,etc
Delivery Time According to the quantity you ordered,or Upon negotiation.
Container Size

20FT GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40FT GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40FT HC:12032mm(Length)x2352mm(Width)x2698mm(High)

Application

Steel plate are widely used in shipping building,

engineer construction,mechanical manufacturing,

the size of alloy steel sheet can be made according

to customer required

2.Mechanical Property

Steel

Grade

Grade Y.S.(MPa)ór0.2≥ T.S. ób/MPa EL IMPACTAkV/J 180°BEND
thickness/mm δ5(%) 0 -20 -40
≤50 >50~100
Q420 CDE 420 400 520~670 18 40 40 27 d=3a
Q460 CDE 460 440 550~7l0 17 40 40 27 d=3a
Q500 DE 500 480 6l0~770 16   40 27 d=3a
Q550 DE 550 530 670~830 16   40 27 d=3a
Q620 DE 620 600 720~890 15   40 27 d=3a
Q690 DE 690 670 770~940 14   40 27

d=3a





3.Chemical Composition

Grade C Mn Si P S V Nb Ti AL Cr Ni

C 0.2 1.0-1.7 0.55 0.035 0.035 0.20 0.015-0.16 0.02 0.015 0.70 0.70
D 0.2 1.0-1.7 0.55 0.030 0.030 0.20 0.015-0.16 0.02 0.015 0.70 0.70
E 0.2 1.0-1.7 0.55 0.025 0.025 0.20 0.015-0.16 0.02 0.015 0.70 0.70

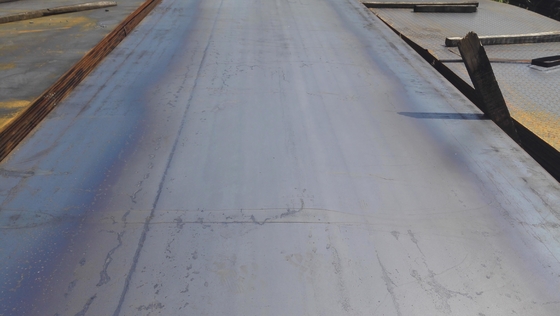

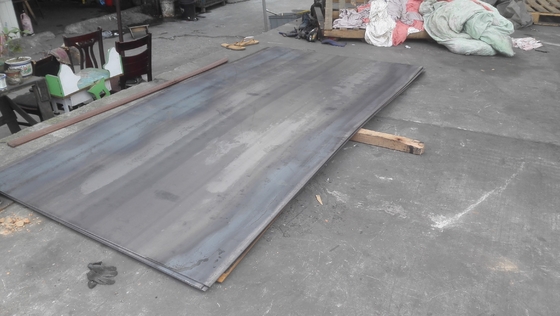

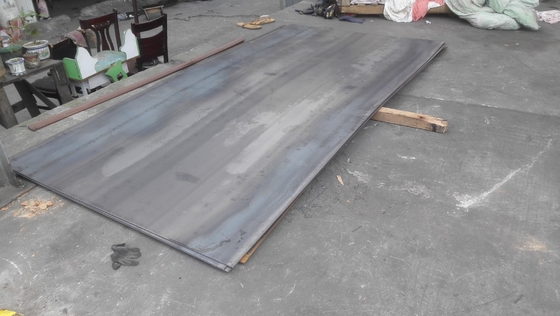

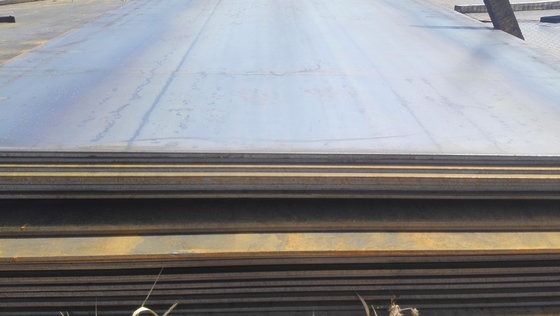

4.Photo Exhibition



High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690 0High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690 1High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690 2High Yield High Strength 10mm steel plate Q390 Q420 Q460 Q500 Q550 Q620 Q690 3
